ISTA Random Vibration Test Machine With Software Sine Random Shock

Name: ISTA Random Vibration Test Machine With Software Sine Random Shock
Brand: LABTONE
Price: 1 USD

Quality ISTA Random Vibration Test Machine With Software Sine Random Shock for sale

Brand Name : LABTONE

Model Number : EV432

Certification : CE, ISO,ISTA

Place of Origin : Dongguan,China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 15 Sets Per Month

Delivery Time : 30-35 working days

Packaging Details : Plywood Case with Vacuum Packing

Sine Force : 3200Kg.f (32KN)

Shock Force : 6400Kg.f (64KN)

Random Force : 3200Kg.f (32KN)

Max Velocity : 2.0m/s

Displacement : 51mm

Payload : 400kg

Highlight : ISTA Random Vibration Test Machine, Vibration Test Machine with Software Sine, vibration test equipment with Shock

Contact Now

Vibration Test System Description

A complete set of vibration testing system is composed of the shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection

Item	Configuration	Qty.
A	Vibration shaker
	A11S24 shaker ((including Pneumatic Centering Controller)	1 set
	B402S blower (including silencer and Duct )	1 set
	Horizontal slip table HG50M	1 set
	Head Expander VT50CM	1 set
B	Power Amplifier
	LA10K power amplifier(including Field power supply)	1 set
C.	Vibration Controller-Vcs-2 (Including Hardware and Control Functions Program software CDS
	Accelerometer (Including Length 7m low noise BNC-M5 cable)	1 set
	Computer(Including keyboard, mouse and monitor)	0 set
D	Documentation Operation Manual, Test Report, Packing List	1 set
E	Accessories
	Maintenance Tools	1 set
	Standard Spare Parts	1 set

Features

Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation. low power consumption and minimum.
High efficiency D class power switching, 3-sigma peak current, harmonic distrotion.
Quick self-diagnosis with safety interlock, high safety reliability.
Airbag shock isolation device for vibration platform without the need of additional. foundation, perfect reprodution of vibrational wave and reduction in vibration transmittance.
Horizontal and vertical expansion platforms for different applications.
Simple controller operation.

Technical Parameters:

Shaker Specifications A30F44
Peak Sine (Pk)	3200Kg.f (32KN)
Random (RMS)	3200Kg.f (32KN) @ISO5344
Shock (Pk)	6400Kg.f (64KN) @6ms
Usable Frequency	1～3000Hz
Maximum Displacement (p-p)	100 mm
Max. velocity	2m/s
Max. acceleration	85G (833 m/s²)
Vertical Load Support	500 kg
Body Suspension Natural Frequency (Thrust Axis)	Less than 2.5 Hz
Armature Diameter	Ф440 mm
Armature Weight	32 kg
Fundamental Resonance Frequency (Bare table)	2,500 Hz (nom.) +/- 5%
Armature Foot-point M10	16pcs PCD 200/400mm
Stray Flux Density	＜10gauss
Allowable partial force	500.N.M
Overall dimension	1270L×1000D×1230H mm
Total Weight	About 2000Kg
Power Amplifier Specifications LA30K
Rated Output Capacity	30 KVA (120Vrms/300Arms)
Signal to Noise Ratio	>65 dB
Amplifier Efficiency	> 90%
Interlock Protection	600L×900D×1750H mm
Rated Output Capacity	490Kg
Interlock Protection	●Shaker Over Travel ●Shaker Over Temp ●Shaker Air Pressure ●Shaker Oil Pressure ●Shaker E Stop ●Amplifier E Stop ●Transformer Over Temp ●UART Power ●PM Over Temp ●PM Over Current ●PM Drive Power ●Input Under Voltage ●Input Over Voltage ●Output Over Voltage ●Output Over Current ●Cooling Fan ●Power Over Temp ●Logic Fault

Head Expanders

Size(mm): 300 x 300-1500x1500

Material: Aluminium /Magnesium

The expansion platform is made of magnesium alloy to provide expansion for the armature. With Reasonable and scientific design, the platform can achieve a testing frequency of 2 kHz. Specific microstructure provides reasonable vibration damping, and minimizes the amplification factor of high frequency resonance.

Fixture / Cube

Material: Aluminium /Magnesium
According to the customer's actual demand, we can offer different shapes of fixture, such as three-dimensional square,L, and T shape.

Pre-Sales Service

* Technical consultation: test method, laboratory planning and suggestion.

* Equipment selection: selection scheme, FAQ.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Picture details:

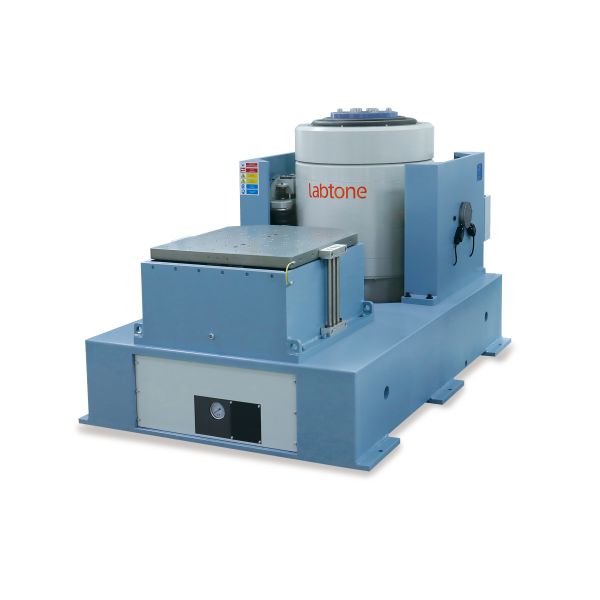

ISTA Random Vibration Test Machine With Software Sine Random Shock
